Артикул:
Stock #58-839
130 840 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Numerical Aperture NA
—
0.55
Wavelength Range (nm)
—
400 - 2000
RoHS
—
Not Compliant
Operating Temperature (°C)
—
-40 to +107
Type of Illumination
—
Fiber Optic Light Guide
Geometry
—
Ring Light
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Description
Light Guide Adapters are required to mate the low profile Fiber Optic Line Lights with fiber optic illuminators.
Numerical Aperture NA
0.55
Wavelength Range (nm)
400 - 2000
RoHS
Not Compliant
Operating Temperature (°C)
-40 to +107
Type of Illumination
Fiber Optic Light Guide
Geometry
Ring Light
Length (inches)
36
Reach 174
Compliant
Ferrule Diameter (inches)
0.562
Working Distance (inches)
1.5-9.0
Inner Diameter (inches)
2.370
Compatible Light Guide Adapter
SX: #38-946MX: #66-908
Fiber Diameter (μm)
50.00
Acceptance Angle (°)
68.00
Minimum Bend Radius (mm)
38.1
Index of Refraction nd - Core
1.581
Index of Refraction nd - Cladding
1.487
Outer Diameter (inches)
3.480
Length Tolerance (inches)
±0.5
Packing Fraction (%)
82% nominal
Fiber Bundle Diameter (inches)
0.365
Transmission Loss
6% per ft. at 60 0nm
Output Beam Angle (°)
20.00
PVC Sheathing
Metal Hose
C'Bore Diameter (inches)
2.600
Отзывы
Оставить отзыв
Загрузка отзывов...

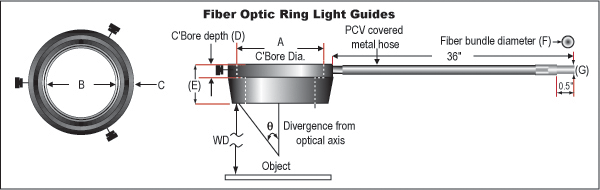

Technical Information
| C'Bore Diameter A | Inner Diameter B | Outer Diameter C | C'Bore Depth D | Ring Height E | Bundle Diameter F | Ferrule Diameter G | Stock No. |
| 0.830" | 0.830" | 1.630" | N/A | 0.735" | 0.250" | 0.312" | #54-176 |
| 1.125" | 1.125" | 1.875" | N/A | 0.800" | 0.250" | 0.312" | #54-175 |
| 1.550" | 1.550" | 2.562" | N/A | 1.150" | 0.333" | 0.562" | #54-174 |
| 2.370" | 2.000" | 3.475" | 0.760" | 1.200" | 0.365" | 0.562" | #54-173 |
| 2.600" | 2.370" | 3.480" | 0.800" | 1.000" | 0.365" | 0.562" | #58-839 |
| 3.790" | 3.500" | 5.000" | 0.760" | 1.370" | 0.462" | 0.562" | #54-258 |

|
|||||||
