Артикул:
Stock #88-379
207 497 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Numerical Aperture NA
—
0.30
Type
—
Microscope Objective
RoHS
—
Compliant
Manufacturer
—
Nikon
Mounting Threads
—
M25 x 0.75
Model Number
—
MRH00105
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Provide High Contrast Fluorescence Observation
- Ideal for Multiple Microscopy Techniques
- High Transmission from UV to the IR
Nikon CFI Plan Fluor Objectives feature high transmission from the ultraviolet to the infrared, along with exceptional flatness across the entire field of view. Nikon CFI Plan Fluor Objectives are ideal multipurpose objectives for a variety of microscopy techniques, including brightfield, fluorescence, polarizing, or DIC microscopy. These microscope objectives are suitable for high contrast fluorescence observation or for applications including photomicrography.
Numerical Aperture NA
0.30
Type
Microscope Objective
RoHS
Compliant
Manufacturer
Nikon
Mounting Threads
M25 x 0.75
Model Number
MRH00105
Weight (g)
150.00
Maximum Sensor Format
2/3"
Working Distance (mm)
16.0
Maximum Diameter (mm)
30
Style
Infinity Corrected
Magnification
10X
Horizontal Field of View, 1/2" Sensor
0.64mm
Horizontal Field of View, 2/3" Sensor
0.88mm
Length excluding Threads (mm)
42.4
Compatible Tube Lens Focal Length (mm)
Focal Length: 200mm
Compatible Cover Glass Thickness (mm)
0.17
Parfocal Length (mm)
58.4
Immersion Liquid
N/A
Field Number (mm)
25
Отзывы
Оставить отзыв
Загрузка отзывов...
Technical Information

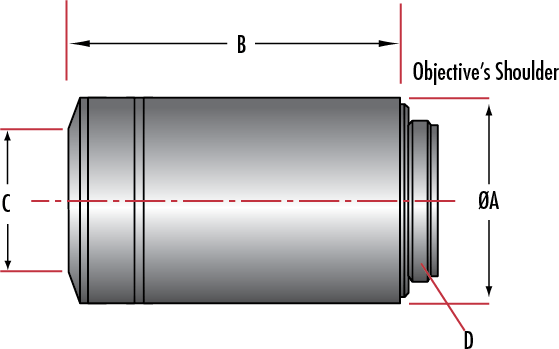

Dimensions (mm) | ||||||||
Stock No. | Nikon Model Number | Immersion Liquid | Magnification | Parafocal Length |
A | B | C | D |
#88-378 | MRH00041 |
N/A |
4X | 60.06 | 30.0 | 42.7 | 16.5 | M25 x 0.75 |
#88-379 | MRH00101 | N/A | 10X | 60.06 | 30.0 | 42.4 | 18.0 | M25 x 0.75 |
#38-004 | MRP07220 | Water | 16X | 75.0 | 35.0 | 72.0 | 6.0 | M32 x 0.75 |
#88-380 | MRH00201 | N/A | 20X | 60.06 | 28.0 | 57.8 | 8.5 | M25 x 0.75 |
#88-381 | MRH00401 | N/A | 40X | 60.06 | 30.0 | 59.2 | 10.0 | M25 x 0.75 |
#88-382 | MRH00602 | N/A | 60X | 60.06 | 31.5 | 59.2 | 5.0 | M25 x 0.75 |
