Артикул:
Stock #88-375
Нашли дешевле?
Характеристики
Numerical Aperture NA
—
0.50
Type
—
Microscope Objective
RoHS
—
Compliant
Manufacturer
—
Nikon
Mounting Threads
—
M25 x 0.75
Model Number
—
MRF00101
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Superior UV Transmission
- High Numerical Aperture Designs
- Feature Low Auto-Fluorescence Materials
Nikon CFI Super Fluor Objectives are designed to provide superior transmission to ultraviolet applications operating down to 340nm, including for use with fluorochromes indo-1, fura-2, and fluo-3, or for photo-activation of caged compounds. Nikon CFI Super Fluor Objectives are designed using low auto-fluorescence materials along with high numerical apertures to guarantee sharp, bright fluorescence images. These microscope objectives have been optimized for improved signal-to-noise ratios at short wavelengths.
Документы
Curve (pdf)
159,1 кб
Numerical Aperture NA
0.50
Type
Microscope Objective
RoHS
Compliant
Manufacturer
Nikon
Mounting Threads
M25 x 0.75
Model Number
MRF00101
Weight (g)
168.00
Maximum Sensor Format
2/3"
Working Distance (mm)
1.2
Maximum Diameter (mm)
32
Length (mm)
58.70
Style
Infinity Corrected
Magnification
10X
Horizontal Field of View, 1/2" Sensor
0.64mm
Horizontal Field of View, 2/3" Sensor
0.88mm
Length excluding Threads (mm)
58.7
Compatible Tube Lens Focal Length (mm)
Focal Length: 200mm
Compatible Cover Glass Thickness (mm)
0.17
Parfocal Length (mm)
59.9
Immersion Liquid
N/A
Field Number (mm)
22
Отзывы
Оставить отзыв
Загрузка отзывов...

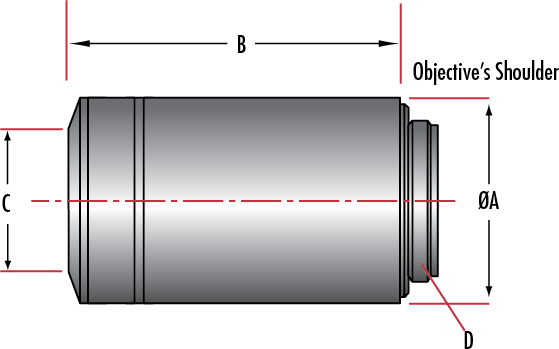

Technical Information
| Dimensions (mm) | ||||||
| Stock No. | Magnification | Parafocal Length |
A | B | C | D |
| #88-374 | 4X | 60.06 | 30.0 | 44.4 | 19.7 | M25 x 0.75 |
| #88-375 | 10X | 60.06 | 32.0 | 58.7 | 8.0 | M25 x 0.75 |
| #88-376 | 20X | 60.06 | 33.5 | 58.9 | 9.0 | M25 x 0.75 |
| #88-377 | 40X | 60.06 | 33.0 | 59.6 | 7.5 | M25 x 0.75 |
