Артикул:
Stock #86-814
97 470 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Numerical Aperture NA
—
0.40
Type
—
Microscope Objective
Manufacturer
—
Olympus
Mounting Threads
—
RMS / 20.32mm x 36 TPI
Model Number
—
1-U2B225
Weight (g)
—
112.0
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Ideal for Brightfield, Darkfield, or Fluorescence Microscopy
- Excellent Price-to-Performance Ratio
- Suitable for Introductory and Advanced Optical Microscopy Applications
- Additional Olympus Infinity Corrected Objectives Available
Olympus Plan Achromatic Objectives are designed for clinical laboratory or examination applications. When using brightfield observation in a transmitted illumination system, Olympus Plan Achromatic Objectives provide excellent field flatness of up to F.N.22.
Документы
Numerical Aperture NA
0.40
Type
Microscope Objective
Manufacturer
Olympus
Mounting Threads
RMS / 20.32mm x 36 TPI
Model Number
1-U2B225
Weight (g)
112.0
Focal Length FL (mm)
9.00
Working Distance (mm)
1.2
Maximum Diameter (mm)
24
Style
Infinity Corrected
Magnification
20X
Length excluding Threads (mm)
43.7
Compatible Tube Lens Focal Length (mm)
Focal Length: 180mm
Compatible Cover Glass Thickness (mm)
0.17
Depth of Field (μm)
1.72
Parfocal Length (mm)
45
Resolving Power (μm)
0.84
Immersion Liquid
N/A
Field Number (mm)
22
Depth of Focus (μm)
688
Отзывы
Оставить отзыв
Загрузка отзывов...

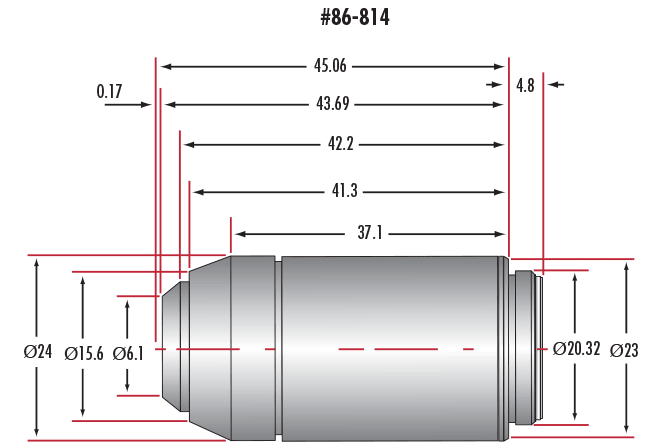

Technical Information
| Stock # | A | B | C | D | E | F | G | |
| PLN 2X | 16-879 | 39.1 | 3.4 | 0.0 | 16.8 | 16.8 | 24.0 | 4.5 |
| PLN 4X | 86-812 | 26.4 | 4.4 | 0.0 | 15.8 | 15.8 | 24.0 | 4.5 |
| PLN 10X | 86-813 | 34.3 | 4.1 | 1.6 | 10.5 | 16.0 | 24.0 | 4.5 |
| PLN 20X | 86-814 | 43.7 | 4.2 | 2.4 | 6.1 | 15.6 | 24.0 | 4.8 |
| PLN 40X | 86-815 | 44.3 | 4.2 | 3.0 | 7.5 | 15.6 | 24.0 | 4.5 |
| PLN 100X | 86-816 | 44.7 | 4.2 | 2.5 | 6.6 | 15.6 | 24.0 | 4.5 |
 |
||||||||
