Артикул:
Stock #86-825
Нашли дешевле?
Характеристики
Numerical Aperture NA
—
0.35
Type
—
Microscope Objective
Wavelength Range (nm)
—
400 - 700
Manufacturer
—
Olympus
Mounting Threads
—
RMS / 20.32mm x 36 TPI
Model Number
—
1-U2M270
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Ideal for Brightfield Microscopy
- Ultra-Long Working Distances Reduce Risk of Specimen Damage

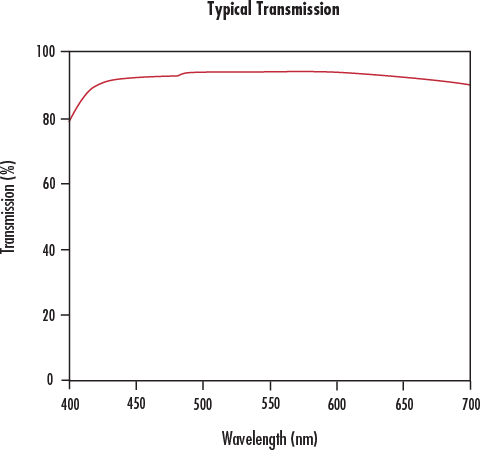

- Over 90% Transmission from 400 – 700nm
- Additional Olympus Infinity Corrected Objectives Available
Olympus Super Long WD M Plan Achromat Infinity Corrected Objectives are ideal for electronic assembly, semiconductor inspection, or other flat field inspection applications where resolution is critical. Olympus Super Long WD M Plan Achromat Infinity Corrected Objectives provide excellent performance, ultra-long working distances, and superior image clarity.
Документы
Numerical Aperture NA
0.35
Type
Microscope Objective
Wavelength Range (nm)
400 - 700
Manufacturer
Olympus
Mounting Threads
RMS / 20.32mm x 36 TPI
Model Number
1-U2M270
Weight (g)
74
Focal Length FL (mm)
3.60
Working Distance (mm)
18.0
Maximum Diameter (mm)
26
Style
Infinity Corrected
Magnification
50X
Length excluding Threads (mm)
27.0
Compatible Tube Lens Focal Length (mm)
Focal Length: 180mm
Compatible Cover Glass Thickness (mm)
N/A
Depth of Field (μm)
2.24
Parfocal Length (mm)
45
Resolving Power (μm)
0.96
Immersion Liquid
N/A
Field Number (mm)
26.5
Отзывы
Оставить отзыв
Загрузка отзывов...
Technical Information
Stock #ABCDEFG
| SLMPLN 20X | 86-824 | 20.0 | 0.5 | 0.2 | 16.1 | 25.0 | 26.0 | 4.9 |
| SLMPLN 50X | 86-825 | 27.0 | 2.2 | 0.7 | 16.9 | 21.4 | 26.0 | 4.9 |
| SLMPLN 100X | 86-826 | 37.4 | 1.0 | 0.2 | 14.7 | 23.8 | 26.0 | 4.9 |
 |
||||||||
