Артикул:
Stock #45-762
45 533 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Diameter (mm)
—
15.00
Effective Focal Length EFL (mm)
—
30.00
Type
—
Relay Lens
RoHS 2015
—
Compliant
Aperture (f/#)
—
f/8
Maximum Sensor Format
—
2/3"
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Optimized for 1:1 Imaging
- f/4 and f/8 Versions Available

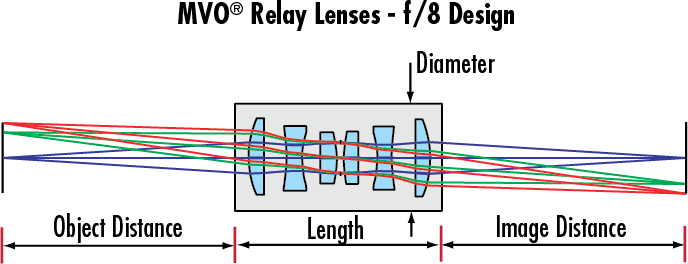

Designed for many of today’s electronic imaging applications, our TECHSPEC® Mounted Relay Lenses offer superior performance in a compact package. These lenses are ideal for designers who are building relay systems for photomultiplier tubes, inspection applications, and nearly any 1:1 imaging application. Field coverage goes up to 8mm diameter (specified on a ½" diagonal sensor) for the 15mm FL and 11mm diameter for the 30mm and 45mm FL versions. Barrel diameters have been kept to a minimum for easy integration. Distance values listed in the table are from the end of the housing.
Prescription information available upon request.
Документы
Code V
979 байт
eDrawing: eprt
63,9 кб
IGES
647,9 кб
PDF Drawing
80,3 кб
STEP: step
238,4 кб
Zemax: zar
102,6 кб
Zemax: zmx
4,9 кб
Diameter (mm)
15.00
Effective Focal Length EFL (mm)
30.00
Type
Relay Lens
RoHS 2015
Compliant
Aperture (f/#)
f/8
Maximum Sensor Format
2/3"
Length (mm)
30.10
Horizontal Field of View, 2/3" Sensor
11.00mm
Reach 209
Compliant
Number of Lenses
6
Image Distance (mm)
38.40
Object Distance (mm)
38.40
Object to Image Track Length (mm)
106.90
Отзывы
Оставить отзыв
Загрузка отзывов...
Technical Information
