Артикул:
Stock #49-683
83 069 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Coating
—
Faces: Multi-Layer Anti-Reflection for Near-Infrared Region
Substrate
—
N-BK7
Surface Quality
—
40-20
Type
—
Non-Polarizing Beamsplitter
Wavelength Range (nm)
—
720 - 1080
RoHS 2015
—
Compliant
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Simplifies Mounting and Alignment
- Standard Female C-Mount Threaded Holes
- Standard and Non-Polarizing Beamsplitter Options
- Additional C-Mounted Beamsplitters, Filters, and Mirrors Available

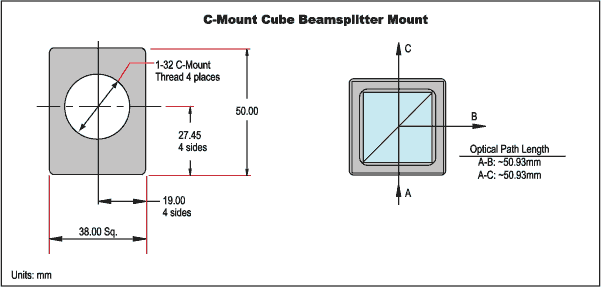

TECHSPEC® C-Mounted Cube Beamsplitters offer easy integration into systems, allowing the use of standard off-the-shelf components. The housing is 50mm H x 38mm W x 38mm D, with four C-Mount (1" x 32 TPI) female threaded apertures. A threaded aperture lid is included to close the unused port. The base has a centered ¼-20 tapped hole for mounting to a post.
The C-Mounted Standard Cube Beamsplitter features a coating designed for visible wavelengths and MgF2 anti-reflection coated faces. The C-Mounted Visible Non-Polarizing Cube Beamsplitter is designed for the 430 - 670nm wavelength range, and the C-Mounted NIR Non-Polarizing Cube Beamsplitter is designed for the 720 - 1080nm wavelength range.
Документы
Coating
Faces: Multi-Layer Anti-Reflection for Near-Infrared Region
Substrate
N-BK7
Surface Quality
40-20
Type
Non-Polarizing Beamsplitter
Wavelength Range (nm)
720 - 1080
RoHS 2015
Compliant
Reach 224
Compliant
Construction
Cube
Surface Flatness
λ/8
Dimensions (mm)
38.0 x 38.0 x 50.0
Mount
C-Mount Enclosure
Housing
Black Anodized Aluminum
Angle Tolerance (arcmin)
±2
Type of Optics
Non-Polarizing Cube Beamsplitter, NIR Coating
Thread Type
C-Mount (1" x 32 TPI)
Extension Length (mm)
38.0
Reflection/Transmission Ratio (R/T)
50/50
Reflection/Transmission Tolerance (%)
±5
Beamsplitter Included
#47-012
Отзывы
Оставить отзыв
Загрузка отзывов...
Technical Information
