Артикул:
Stock #20-020
31 716 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Diameter (mm)
—
25.40 +0.0/-0.1
Coating
—
Uncoated
Surface Quality
—
60-40
Bevel
—
Protective as needed
Clear Aperture CA (mm)
—
22.86
Type
—
Protective Window
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Transmission from 1.2 - 7μm

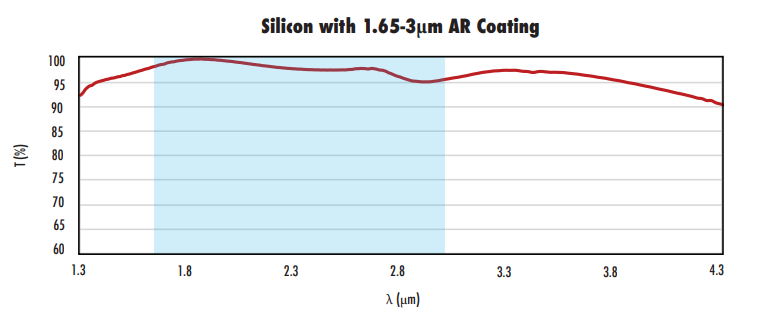

- Available Uncoated or AR Coated for 1.65 - 5μm
- Ideal for Weight Sensitive Applications
TECHSPEC® Silicon (Si) Windows manufactured from optical grade silicon are popular for the 1.2 - 7μm spectral region due to their low cost and low density. Due to its low density (half that of germanium or zinc selenide), silicon is ideal for weight sensitive applications, especially those in the 1.65 - 5μm region. Density is 2.329 g/cm3 and Knoop Hardness is 1150, making it harder and less brittle than germanium.
Документы
Diameter (mm)
25.40 +0.0/-0.1
Coating
Uncoated
Surface Quality
60-40
Bevel
Protective as needed
Clear Aperture CA (mm)
22.86
Type
Protective Window
Wavelength Range (nm)
1200 - 7000
RoHS
Compliant
Clear Aperture (%)
90.00
Thickness (mm)
3.00 ±0.1
Coefficient of Thermal Expansion CTE (10-6/°C)
2.55
Density (g/cm3)
2.33
Edges
Fine Ground
Index of Refraction nd
3.422 @ 5µm
Knoop Hardness (kg/mm2)
1150
Poisson's Ratio
0.265
Substrate:Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Silicon (Si)
Surface Flatness
1λ
Young's Modulus (GPa)
140
Parallelism (arcmin)
<3
