Артикул:
Stock #03-665
58 425 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Type
—
Fixed
RoHS 2015
—
Compliant
Reach 224
—
Compliant
Construction
—
Black Anodized Aluminum, Stainless Steel Post
Type of Optics
—
Cylindrical Tube
Compatible Post
—
¼-20
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Adjustable Height Bar Clamp Included with #03-665
- Ideal for Mounting Laser Tubes and Large Optical Elements
- ¼-20 Tap Hole Allows Mounting to 0.50" Diameter Post
Our V-Block base is ideal for mounting laser tubes and optical elements thick enough to stand vertically on edge (such as most achromats). The six ¼-20 tap holes around the base are designed to accept clamp posts, but may also be used to mount the V-Block. A ¼-20 tap hole in the center of the base allows mounting to any 0.50" diameter post. Adjustable height bar-type clamp secures components in the V-Block.
Документы
Type
Fixed
RoHS 2015
Compliant
Reach 224
Compliant
Construction
Black Anodized Aluminum, Stainless Steel Post
Type of Optics
Cylindrical Tube
Compatible Post
¼-20
Size of Compatible Optics (mm)
5.6 - 67.9
Number of Clamps
2
Отзывы
Оставить отзыв
Загрузка отзывов...

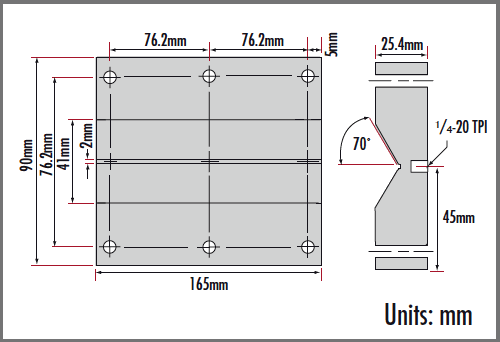

Technical Information

V-Block Base
