Артикул:
Stock #53-039
84 043 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Type
—
Adjustable - Tip-Tilt
RoHS 2015
—
Compliant
Construction
—
Black Anodized Aluminum
Weight (lbs)
—
2.66
Reach 211
—
Compliant
Fine Tilt Angle (°)
—
±4.0
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Jaw Clamp Mounts Alone (¼-20) or to Kinematic Frame
- Accepts up to 4-¼" Diameters
- Fine Angular Resolution Kinematic

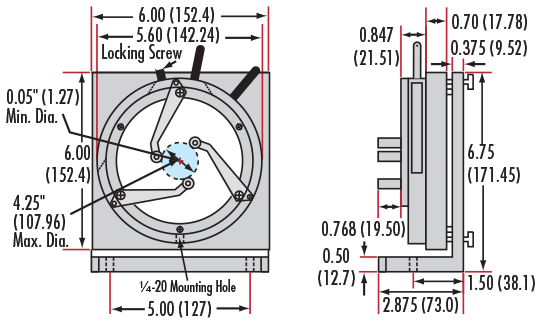

An affordable self-centering jaw clamp for use with components up to 4-¼" Dia. Mounted alone on the ¼-20 tapped hole in the base, or to the 6" kinematic frame, the jaw clamp precisely centers your components without the danger of warping them with clumsy edge clips. The kinematic mount has an angled base, to allow fastening by either ¼-20 cap screws or un-fastened for stand-alone use. Locking screw allows jaw position to be fixed to secure against accidental movement. Mount features precise kinematic pivot movement (two-axis tilt) with orthogonal three-point suspension. Adjustment is made by three 64 pitch screws. Construction is black anodized aluminum.
Документы
Отзывы
Оставить отзыв
Загрузка отзывов...
Technical Information
