Артикул:
Stock #48-999
68 041 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Coating Specification
—
Ravg <0.5% @ 420 - 680nm
Substrate
—
N-SF11
Surface Quality
—
40-20
Type
—
Linear Polarizer
Wavelength Range (nm)
—
420 - 680
RoHS 2015
—
Compliant
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Visible and NIR Coating Options Offered
- 500:1 Extinction Ratio
- AR Coated for <0.5% reflection per surface
Designed for broadband applications, TECHSPEC® Broadband Polarizing Cube Beamsplitters offer a transmission of greater than 90% for P-polarized light and a reflection efficiency of greater than 99% for S-Polarized light across the entire design wavelength range. Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of the prisms. An anti-reflection (AR) coating has been applied to each face of the beamsplitter to achieve less than 0.5% reflection per surface.
Документы
Coating Specification
Ravg <0.5% @ 420 - 680nm
Substrate
N-SF11
Surface Quality
40-20
Type
Linear Polarizer
Wavelength Range (nm)
420 - 680
RoHS 2015
Compliant
Reach 219
Compliant
Construction
Cube
Clear Aperture (%)
90
Surface Flatness
λ/8
Dimensions (mm)
10.0 x 10.0 x 10.0 ±0.1
Extinction Ratio
500:1
S-Polarization Reflection (%)
>99
P-Polarization Transmission (%)
>90
Beam Deviation (arcmin)
±3
Отзывы
Оставить отзыв
Загрузка отзывов...

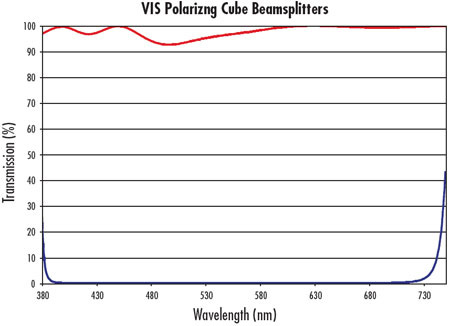

Technical Information
