Артикул:
Stock #48-545
51 881 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Coating Specification
—
Surface 2: Rabs <2.0% @ 420 - 670nm
Substrate
—
Corning Eagle XG
Surface Quality
—
80-50
Clear Aperture CA (mm)
—
21.0 x 21.0
Type
—
Linear Polarizer
Wavelength Range (nm)
—
420 - 700
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Wire Grid Technology

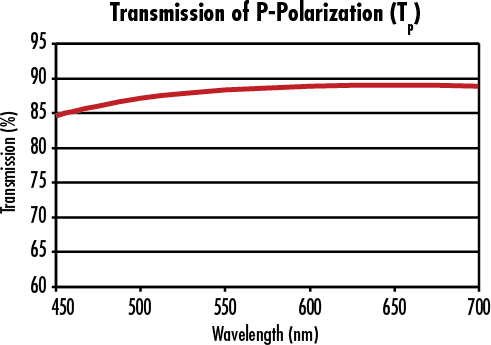

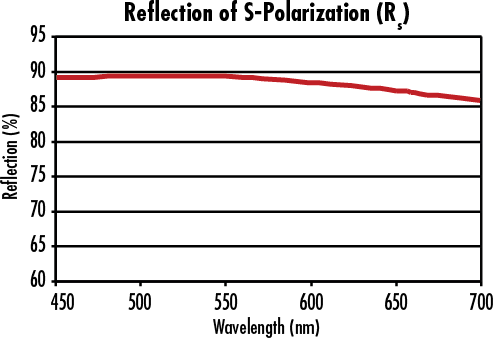

- Reflects S-Polarized Light, Transmits P-Polarized Light
- Ideal for High Temperature Environments
Broadband Polarizing Plate Beamsplitters consist of a thin layer of aluminum MicroWires adhered to a glass window. These beamsplitters are an alternative and economical substitute for ruled or holographic wire grid polarizers. Providing exceptional image contrast and uniformity, these beamsplitters are ideal for applications requiring large angular apertures and high throughput.
Note: MicroWires are very fragile. Handle these beamsplitters with care.
If the operating temperature will exceed 100°C, turn the MicroWires surface away from the input beam for optimum performance. At temperatures below 100°C, the MicroWires can be oriented towards the input beam.
Документы
Coating Specification
Surface 2: Rabs <2.0% @ 420 - 670nm
Substrate
Corning Eagle XG
Surface Quality
80-50
Clear Aperture CA (mm)
21.0 x 21.0
Type
Linear Polarizer
Wavelength Range (nm)
420 - 700
RoHS 2015
Compliant
Angle of Incidence (°)
45 ±15
Thickness Tolerance (mm)
±0.07
Construction
Wire Grid
Thickness (mm)
0.70
Operating Temperature (°C)
-40 to +200
Dimensions (mm)
25.0 x 25.0
Dimensional Tolerance (mm)
±0.2
Reach 209
Compliant
Thermal Expansion
31.7 x 10-7/°C
Transmission Axis Tolerance (°)
±1
