Артикул:
Stock #48-215
29 877 ₽
/шт
Нашли дешевле?
В корзину
Купить в 1 клик
Характеристики
Diameter (mm)
—
12.50
Coating Specification
—
Surface 1: 50%R/ 50%T ±5% @ 488nmSurface 2: Rabs<0.5% @ 488nm
Substrate
—
Fused Silica Excimer Grade (Corning 7980 KrF)
Surface Quality
—
10-5
Type
—
Non-Polarizing Beamsplitter
RoHS
—
Compliant
Все характеристики
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Learn More
Product Family Description
- Insensitive to Input Beam Polarization
- High Damage Threshold
- Precision UV Fused Silica Substrate
Laser Line Non-Polarizing Plate Beamsplitters are insensitive to input beam polarization. These beamsplitters feature high damage thresholds and can be integrated into a variety of laser applications. The beamsplitter coating is complemented by a high efficiency anti-reflection (AR) V-coating for enhanced performance. A precision excimer grade UV fused silica substrate, featuring a 10-5 surface quality and 5arcsecond parallelism, provides excellent thermal stability, low wavefront distortion, and ultra-low auto-fluorescence. For wedged versions, please contact our Sales Department.
Документы
Diameter (mm)
12.50
Coating Specification
Surface 1: 50%R/ 50%T ±5% @ 488nmSurface 2: Rabs<0.5% @ 488nm
Substrate
Fused Silica Excimer Grade (Corning 7980 KrF)
Surface Quality
10-5
Type
Non-Polarizing Beamsplitter
RoHS
Compliant
Angle of Incidence (°)
45 ±5
Thickness Tolerance (mm)
±0.10
Clear Aperture (%)
80.00
Thickness (mm)
3.00
Parallelism (arcsec)
5.00
Design Wavelength DWL (nm)
488
Dimensional Tolerance (mm)
+0.00/-0.10
Transmitted Wavefront, P-V
λ/10 @ 632.8nm
Damage Threshold, CW
10 kW/cm2
Отзывы
Оставить отзыв
Загрузка отзывов...

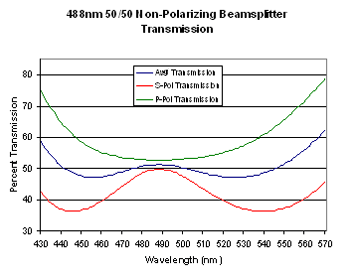

Technical Information
![](/upload/files/5169.gif)
